The Dayton Audio ND65-PR 2-1/2 passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output.

Highlights

Rigid black anodized aluminum alloy cone
High excursion capability: 10 mm peak to peak
Same family look as ND Series woofers
Mass adjustable for a vast range of tuning frequencies

Product details

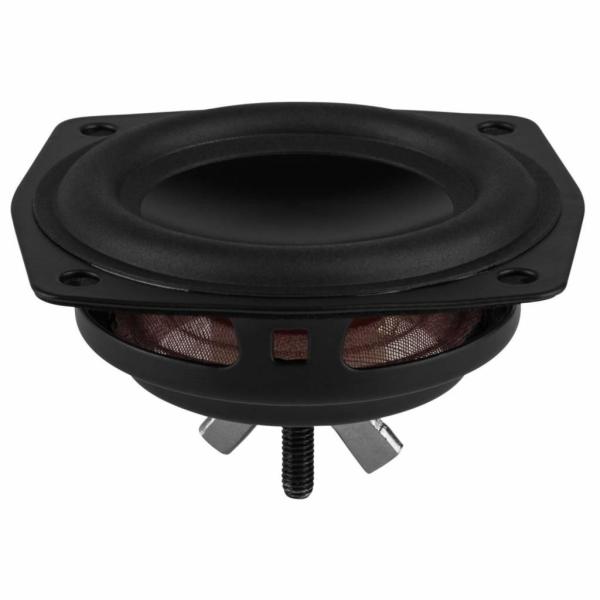

Dayton Audio ND65-PR 2-1/2 Aluminum Cone Passive Radiator

Tune small enclosures with Dayton Audio's ND65-PR 2-1/2 passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND65-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND65-PR introduces a new range of possibilities.

The ND65-PR 2-1/2 passive radiator includes:

(1) Passive radiator

(1) 4.3 gram disk weight

(1) Wing nut

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
